Apriltag
This page is not finished!
If you are a team member and know more about this topic than what is currently here please contribute that information.
Apriltags are square qr-code-like images that encode a very small amount of information. They are sometimes placed in FRC fields, and can be used for pose-estimation to figure out where the robot is relative to the tags.
Families

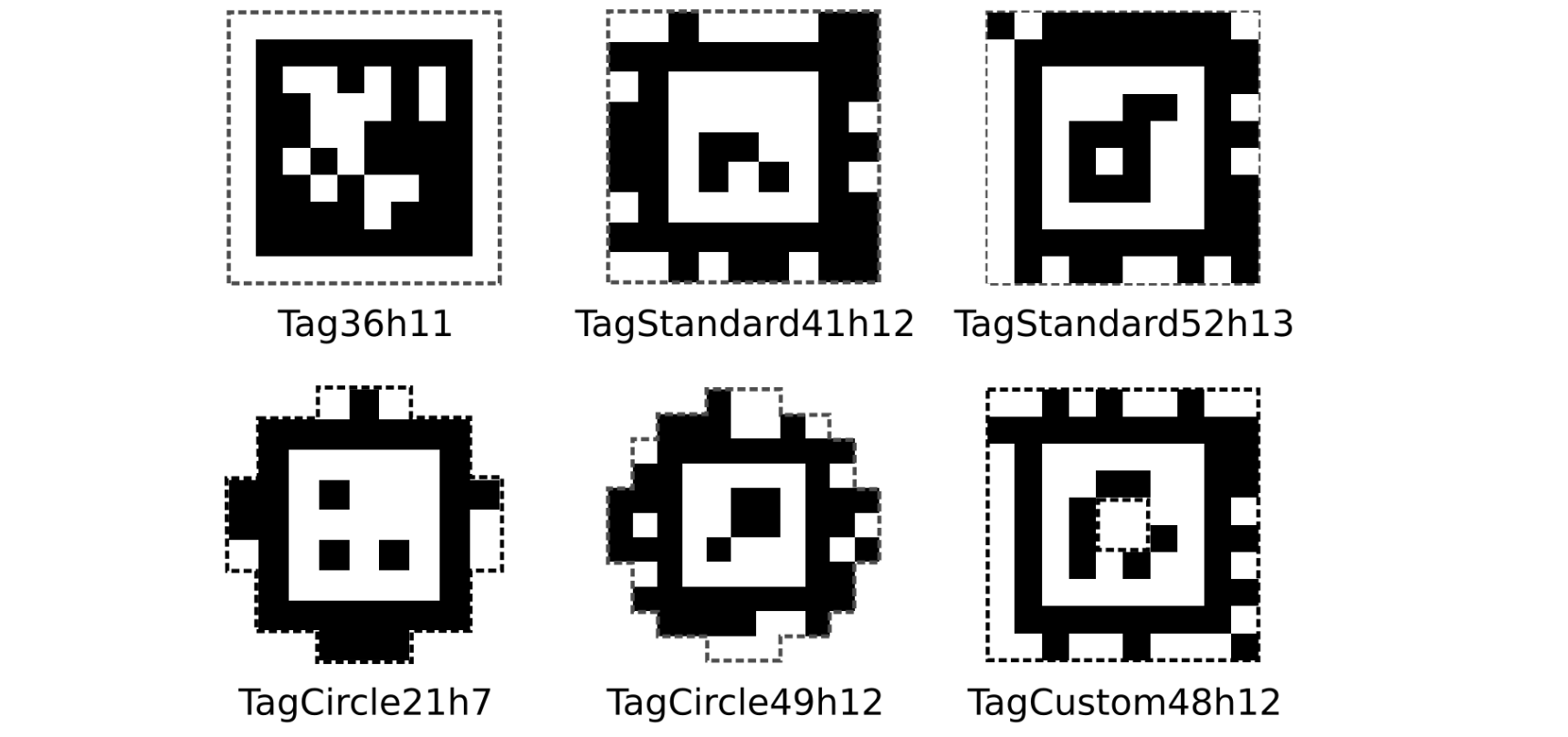

There are different kinds of 'families' of apriltags. Here is a chart from the FIRST docs that shows a few of the most common families:
The 36h11 family was used in 2024 and 2025, and is the family most likely to be used in future years.
Uses
Links
- https://docs.limelightvision.io/docs/docs-limelight/pipeline-apriltag/apriltags
- For FTC, https://ftc-docs.firstinspires.org/en/latest/apriltag/vision_portal/apriltag_intro/apriltag-intro.html
- https://community.firstinspires.org/2025-apriltag-information (2025 apriltag info)
- Apriltag Images and User Guide: https://firstfrc.blob.core.windows.net/frc2024/FieldAssets/Apriltag_Images_and_User_Guide.pdf
