Neo 550

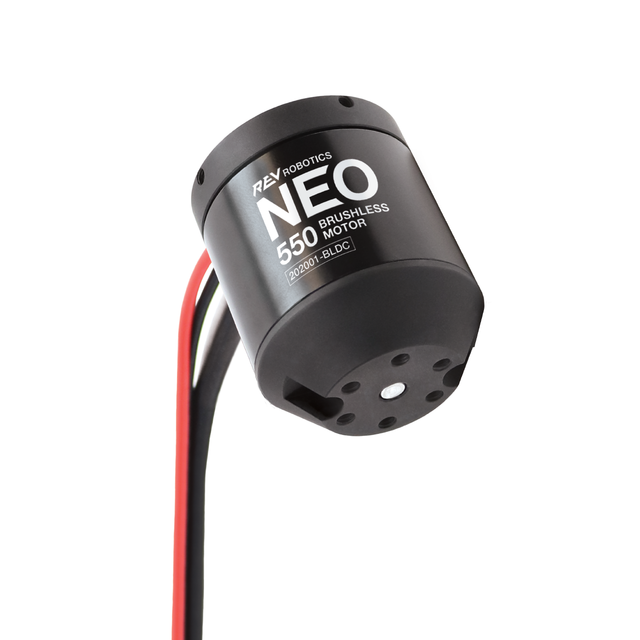

The NEO 550 Brushless Motor is a member in the NEO family of brushless motors. Its output power and small size are specifically designed to make NEO 550 the perfect motor for intakes and other non-drivetrain robot mechanisms. Mounting holes and pilot match a standard 550 series motor, making it natively mount to many existing off-the-shelf gearboxes.
- https://www.revrobotics.com/rev-21-1651/
Drawing

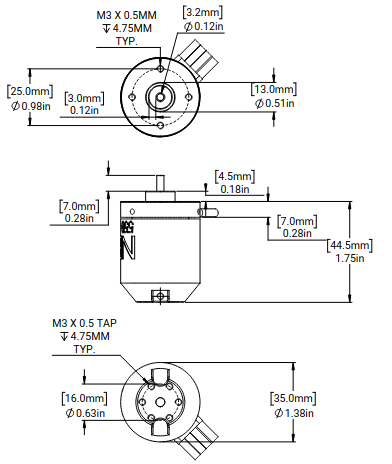

This screen capture was taken from REV's official drawing.
Specifications
Taken from the REV website, then converted into a table.
| Key | Value |
|---|---|
| Nominal Voltage | 12 V |
| Motor Kv | 917 Kv |
| Free Speed | 11000 RPM |
| Free Running Current | 1.4 A |
| Stall Current | 100 A |
| Stall Torque | 0.97 Nm |
| Peak Output Power | 279 W |
| Motor Wire Gauge | 16 AWG |
| Hall-Sensor Encoder Resolution | 42 counts per rev. |
| Mounting Holes | M3 x 0.5 - max screw engagement 0.20in (5mm) |
| Output Shaft Diameter | 0.125in (3.175mm) |
| Output Shaft Length | 0.267in (7mm) |
| Output Pilot | 0.512in (13mm) |
| Body Length | 1.752in (44.5mm) |
| Body Diameter | 1.378in (35mm) |
| Motor Phase Wires Length | 150mm (5.91in) |
| Motor Phase Wires Diameter | 14AWG |
| Sensor Cable Length | 300mm (11.81in) |
| Sensor Cable Diameter | 24AWG |
| Weight | 0.142kg (0.313lbs) |
Sources and Further Reading
- https://www.revrobotics.com/rev-21-1651/
- https://docs.revrobotics.com/brushless/neo/550
- https://www.revrobotics.com/content/docs/REV-21-1651-DR.pdf (Drawing)
