The Shrieking Eel

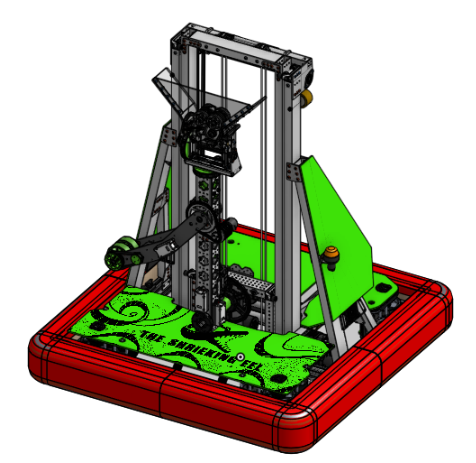

The Shrieking Eel was our robot for the 2024-25 season Reefscape.
Design
Frame and Drivetrain

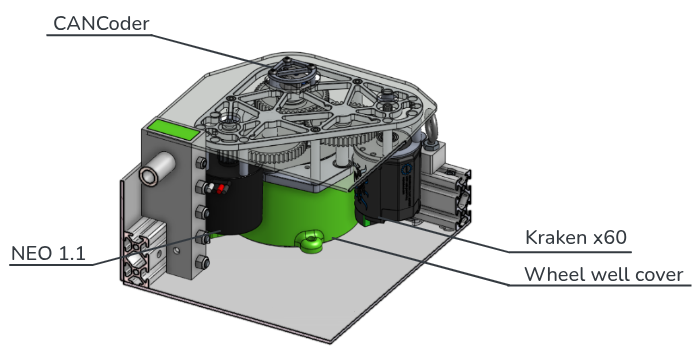

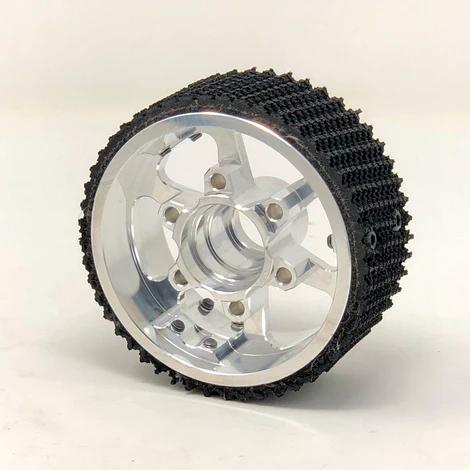

The Eel is a Swerve Drive robot. We use Mk4i modules with an L2 gearing in order to accelerate quickly for short cycle times. The drive motors are Kraken x60s, and the steering motors are NEO 1.1s. We 3D-printed wheel well guards to protect the drive train from dirt and debris. The wheels are Black Neoprene Billet wheels from Swerve Drive Specialties, with an outside diameter (OD) of 4" and a width of 1.5". We use CANCoders to measure the absolute rotation of the wheels.

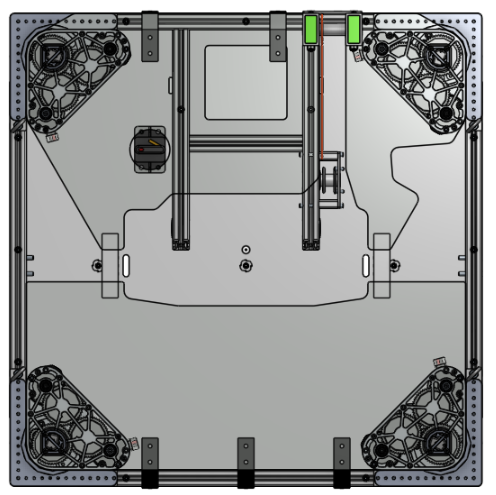

The frame perimeter is 29.5"x29.5". The baseplate is made of 3mm polycarbonate instead of HDPE for weight reasons, inspectability and frame rigidity. It is dropped by 0.75" with a aluminum blocks between the swerve module plate and the frame. Lowering the baseplate prevents bumps on the field and also reduces the risk of high-centering1 on algae gamepieces. The rails on the frame are made of 80/20 #1020, with aluminum blocks to lower the CG. Eye bolts were added in the drop blocks to add carrying straps.
Bumpers
This year's game manual introduced changes to bumper requirements, and we went through a lengthy design process to make them more sophisticated than ever.
Each set of bumpers (4 pieces in total, 2 red and 2 blue) takes the form of two U-shaped halves that form a rectangle.
Not finished
This section is a work in progress. An exploded view would be very nice, and it has been said that the backer components might not be made out of oak plywood anymore due to weight reduction.
Backer components are made of oak plywood, and have a height of 5in and a thickness of 0.7 inches.
The foam has two layers instead of three for shock reduction and simplicity. The inner layer is made of 2” Polyethylene (PE) Foam 1.7#/cuft from Foam Factory,
The red/blue cloth covers on the bumpers are made of Seattle Fabrics' 1000D Cordura Nylon. The numbers "2530" were printed as vinyl stickers. Comic sans was chosen as a font after a short survey.
These components were used for the brackets and mounts:
- Corner Brackets: 2" Aluminum L channel 2" bracket
- Plummer Industries Vertical Mounts for frame attachment
- Through bolt X 2 through the 80/20 frame on each long side of U bumper for stabilization
Elevator

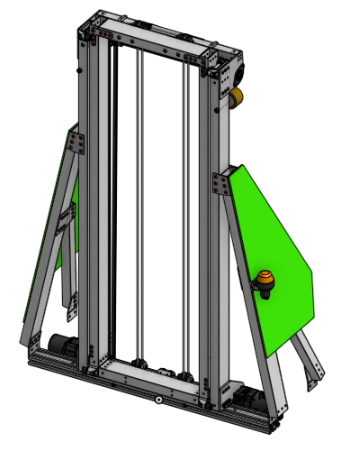

Our robot has a 2-stage cascade elevator with an arm/wrist mechanism on the top. The elevator is made of 1/16” thick 2x1 box tubes. It uses a Billet Elevator Bearing Block by SDS for the bearing, and the rigging is #25 roller chain for the first stage and Dyneema rope from Thriftybot for the second. The elevator is driven by Kraken motors, and there are constant force springs that cancel some of the weight to allow it to accelerate quickly.
Arm

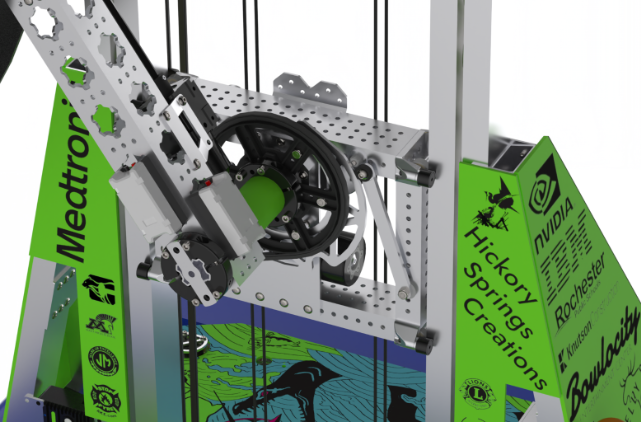

The arm is attached by a joint to the second stage of the elevator. A NEO Vortex controls that joint, with a MAXPlanetary Gearbox and some other gears with an overall reduction of 96:1.
The arm itself is made of 2x2 MAXTube from REV.
Wrist
At the end of the arm, there is a wrist with 2 DOF (pitch and roll). It is powered by two Neo 550s. One of the motors is located further back on the arm and controls the roll of the wrist, and the other is on the wrist and controls the pitch.
Coral Manipulator

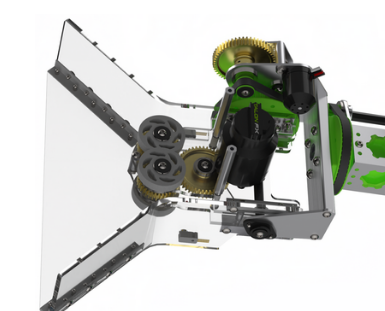

The coral manipulator is mounted to the end of the wrist. It is shaped like a dust pan and uses two sets of compliant wheels powered by a Falcon 500. The wheels grip the inside of a coral gamepiece against the dustpan to intake it, and can be reversed to release the coral over the reef.
Climber
The Shrieking Eel has a two-bar climber design. It uses the bars to rotate the cage and then latches around the cage. One bar is powered by a NEO Vortex, and the other is not controlled.
Algae Manipulator
The Eel has an algae manipulator attached to the elevator. It is made out of two plates of MAXComposite, and folds out on a rotation sprocket. There are two compliant wheels that roll algae in/out of the manipulator. It is powered by two NEO 550s, one of which is used to control the algae manipulator arm and the other spins the wheels.
The algae manipulator can intake from the reef and the lollipops (ice cream cones? The algae game pieces stacked on coral at the start of the game). It can score algae in the processor and in the barge.
Robot Aesthetics
The Shrieking Eel has a number of aesthetic elements.
TODO: Add more information
Electronics Cover
Sponsor Boards
There are two sponsor boards on the robot.
Eel Stickers
Electronics
We don't have electronics documentation
If you see this, please talk to Luke. He says there was a sheet of paper in the shop with our electrical layout, but it has been lost.
Any information at all on our electrical design would be appreciated. Please add it if you know something.
Vision System
The Shrieking Eel has an impressive vision system this year. It features three Limelight 4's for reading apriltags on the field and doing pose-estimation, a time-of-flight depth camera for precise aiming when scoring coral, and a 360 camera for recording every angle of matches.
That other camera
There is another camera on the robot, but it isn't technically used for the vision system. should it be added here or not?
Limelights
TODO: Add more details
There are three limelight 4's on the robot.
Coverage

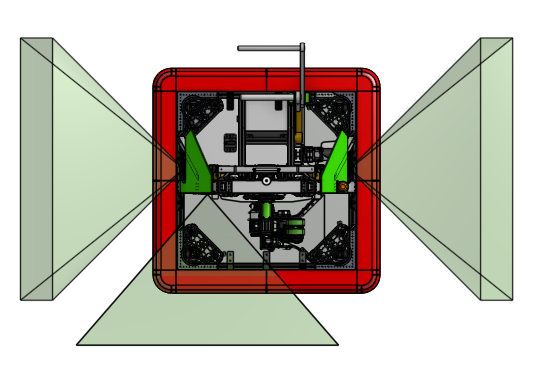

Note that the frustums shown in the image extend much further than the image suggests.
Link to cropping method: https://github.com/Team2530/RobotCode2025/blob/1598b280134871187481bdb6dd90db7fc00f7f44/src/main/java/frc/robot/subsystems/Limelight.java#L71
Depth Camera

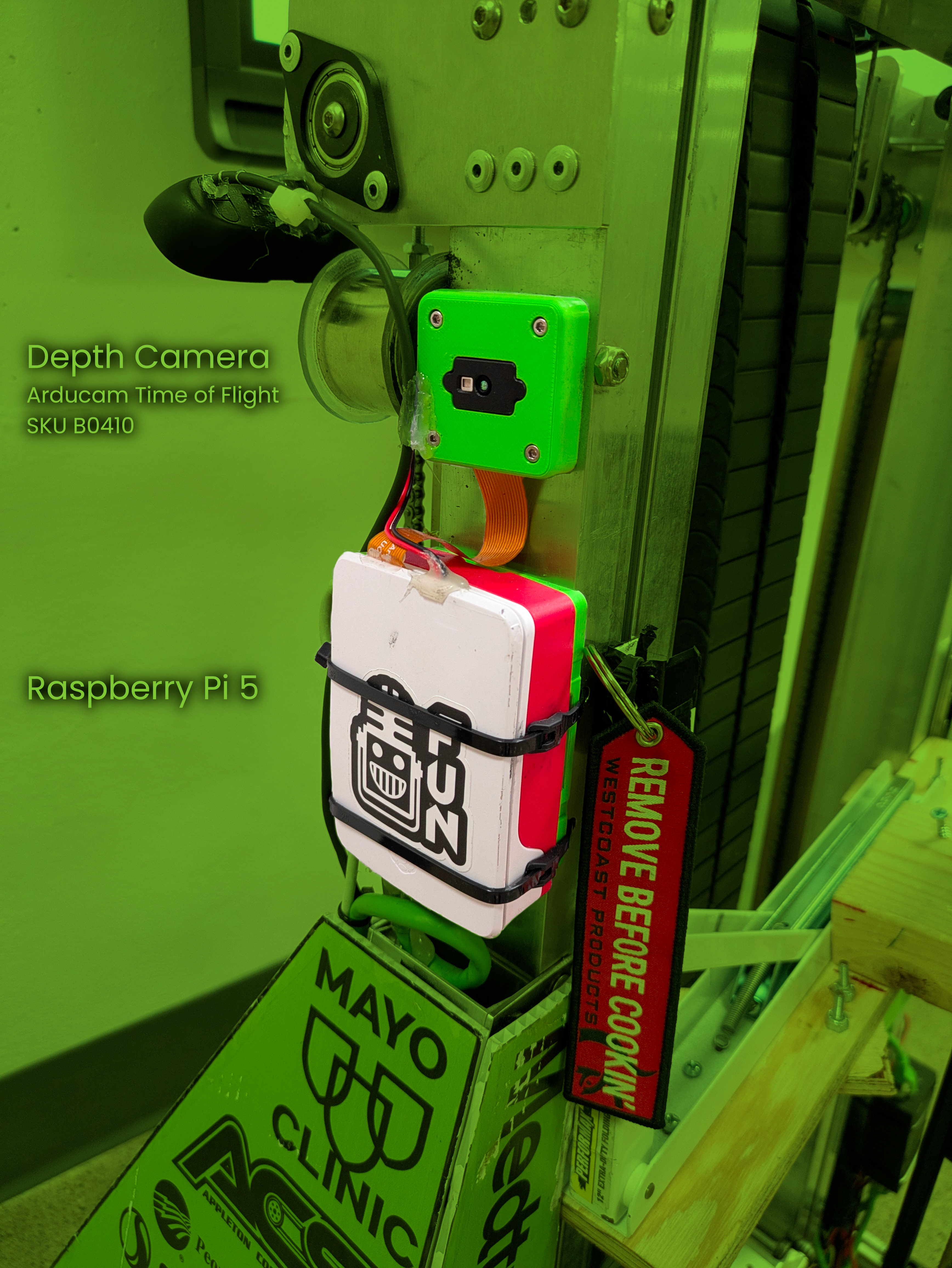

TODO: Depth camera information
The time of flight camera was featured in a facebook post by FIRST Updates Now:
TODO: Show a video that more accurately depicts the depth camera
The First updates now clip doesn't actually show the depth camera aim correction in action (although they did record it), so we should add something to demonstrate it.
360 Camera
This is the first year that our team has built a robot with a 360 camera on it. The Shrieking Eel has a Insta360 mounted at the base of the arm.
More videos will be added soon
We recorded a lot of matches with the Insta360 and they will be here soon.
